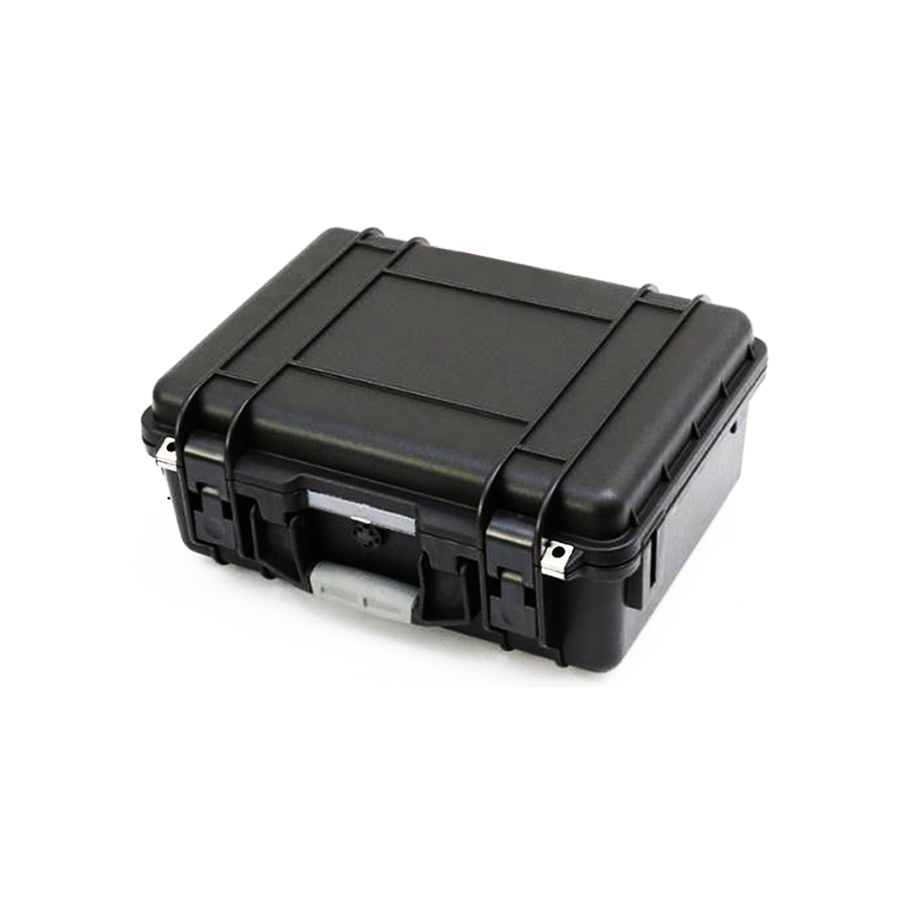

| JD9110 Solar radiation recorder | |
|
|
The JD9110 Solar Radiation Recorder is a high‑performance device specifically designed for data acquisition and recording from solar radiation sensors, enabling continuous monitoring of solar radiation information.

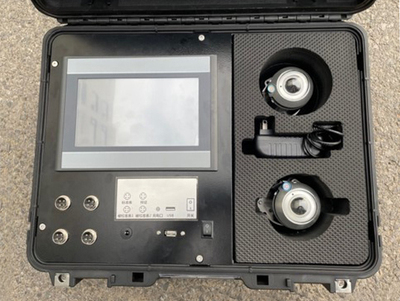

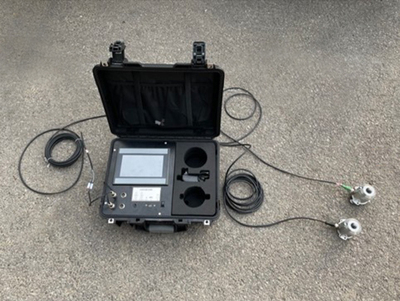

Powered by a high‑performance microprocessor and equipped with a large‑capacity data storage module, the JD9110 supports long‑term data logging with customizable recording intervals. Designed to industrial control standards, it features a 7‑inch color LCD touchscreen with an intuitive and user‑friendly interface. The enclosure is portable, waterproof, and shock‑resistant, allowing reliable all‑weather operation in field environments and suitability for long‑term outdoor observation tasks.
The system is characterized by low power consumption and stable performance, supporting both AC and DC power supplies for real‑time data acquisition and storage. It includes a built‑in power‑failure protection function and a high‑capacity battery, enabling continuous operation for 3 – 6 days without external power.
The JD9110 can operate in synchronization with a computer or independently, and data can be exported and processed through its dedicated management software for report generation and analysis.
It is widely used in meteorology, environmental monitoring, agriculture, forestry, hydrology, construction, scientific research, and education, providing reliable data acquisition and recording support for solar radiation observation and analysis.
Description
Specifications
Number of channels
Storage capacity
Display mode
Working environment
Input range
Accuracy
Internal resolution
Display cycle
Display screen and processor
Protective accessories
Store content
Display content
Communication interface
Power supply
Data management
4-channel
5M bytes, capable of continuously storing 50000 pieces of data
7-inch LCD display, allowing real-time monitoring data, historical data, and various setting parameters to be viewed
-40 ℃~+70 ℃, relative humidity less than 90%
12v
0.5％
±1μV
10S
7-inch color touch screen+data processor+portable suitcase integrated
Aluminum alloy metal shell, anti-static, waterproof, and non-magnetic
Date, time, instantaneous radiation value, daily cumulative measurement, and maximum value
Date, time, instantaneous radiation value, daily cumulative measurement, and maximum value
Standard RS485 computer communication interface
Built in rechargeable battery, standby for 3-5 days or more
Data can be exported in EXCEL format through a USB drive
|
|
