ACERAIN
High‑performance acquisition
Multi‑signal compatibility
Large internal storage
Compact and durable design
Multi‑signal compatibility
Large internal storage
Compact and durable design

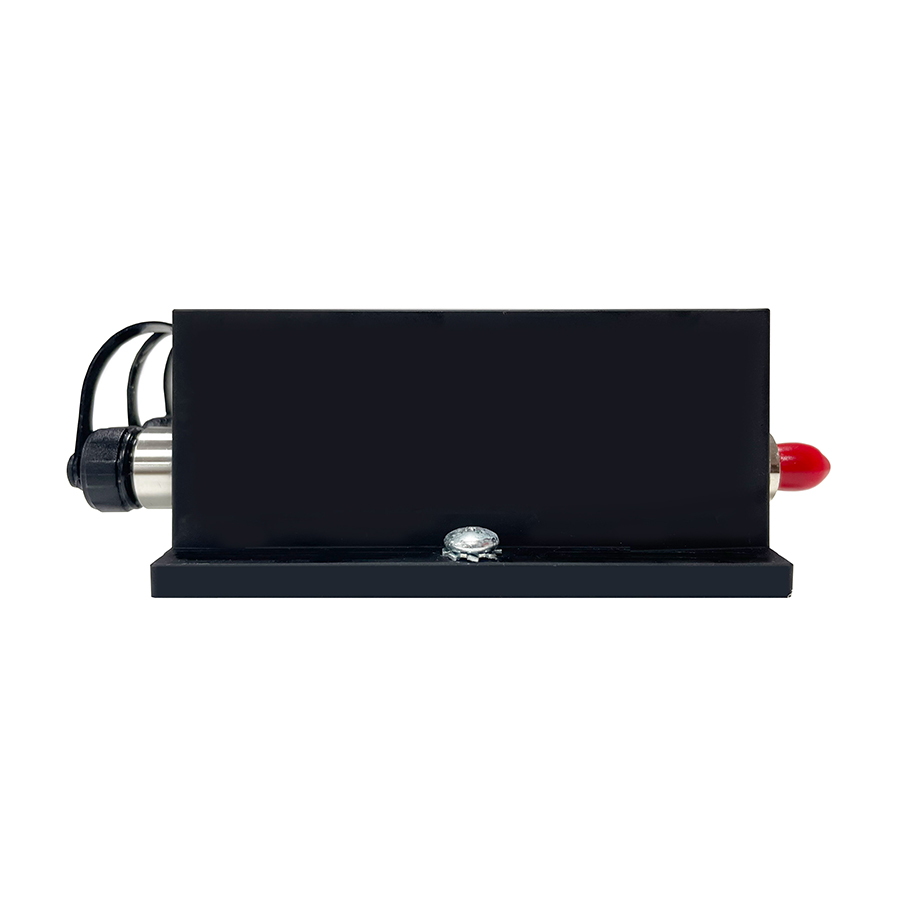

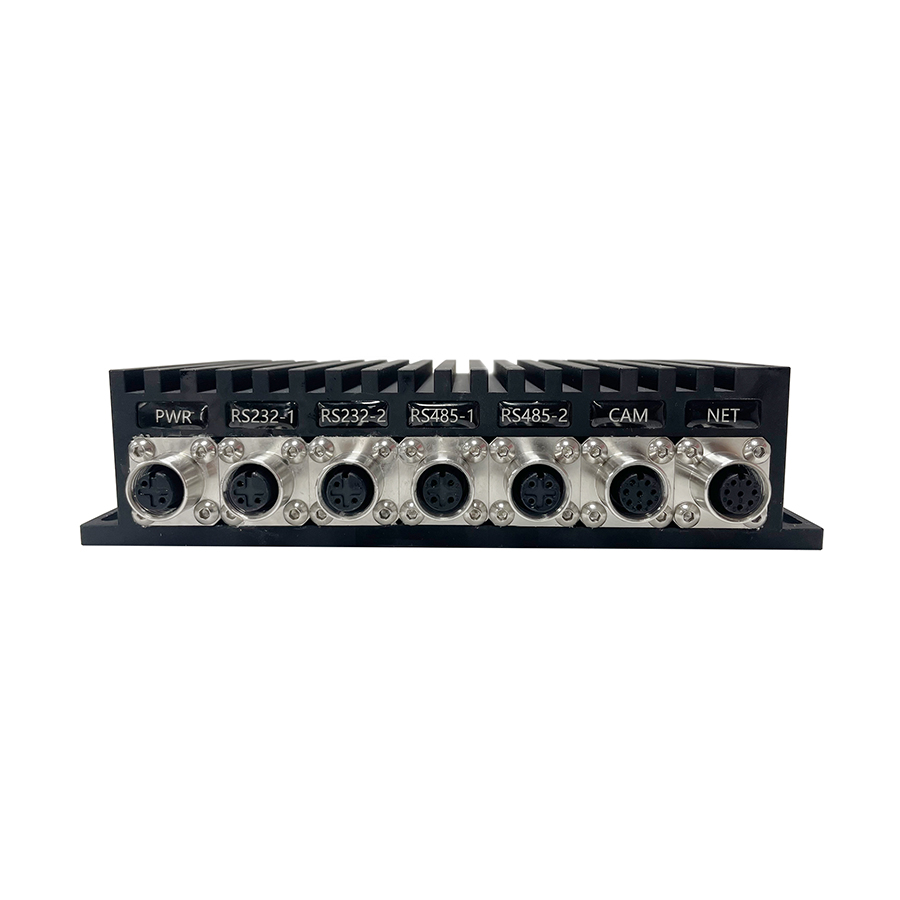

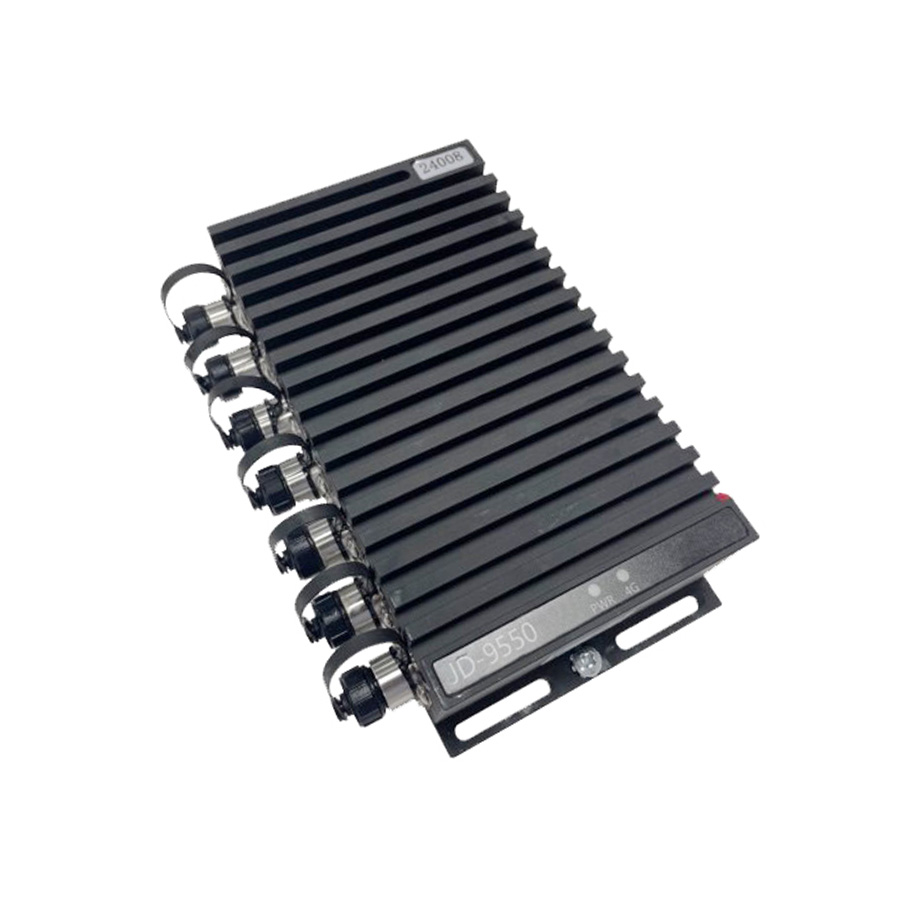

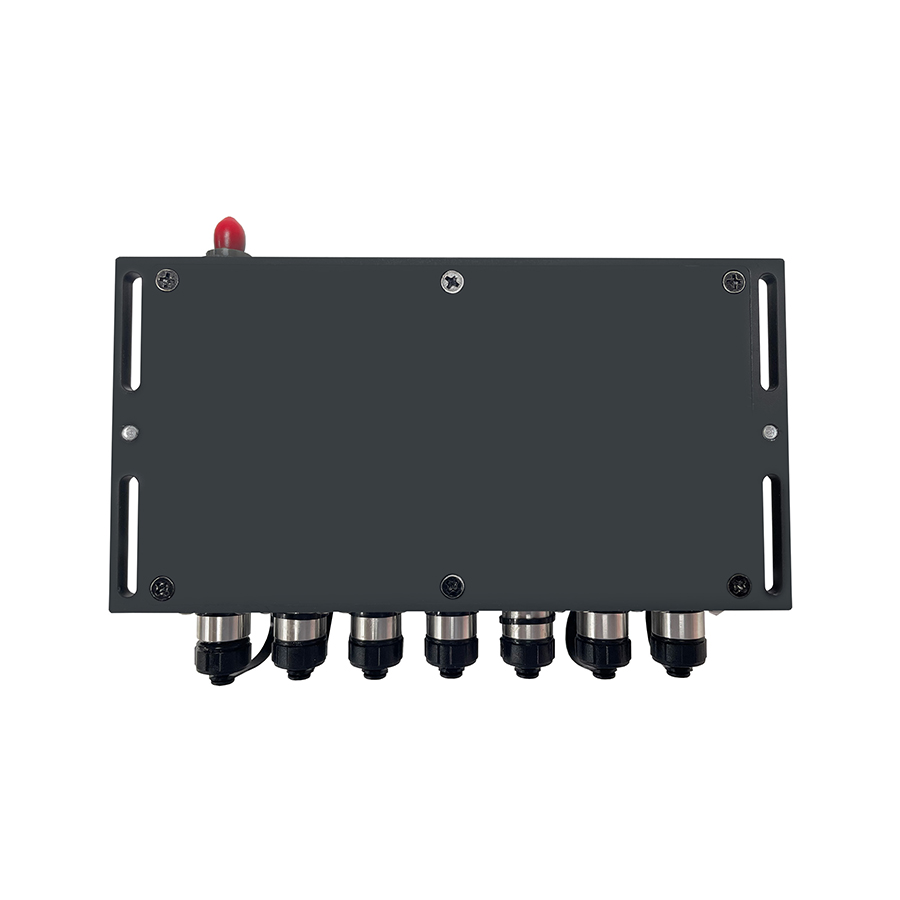

| JD9550 Multi Parameter Data Logger | |||||
|
|
The JD9550 High‑Performance Data Acquisition Unit adopts advanced microelectronic technology and an integrated design, enabling highly reliable acquisition, processing, and transmission of multiple signal types.
The device supports programmable control and can collect various signal types, including solar radiation, temperature, air pressure, shock, noise, vibration, velocity, displacement, overload, strain, and gyroscope signals. It integrates modules for data computing, recording, storage, and communication, achieving a fully integrated process from signal detection to data analysis.
The JD9550 houses a built‑in 32 GB high‑capacity storage unit that allows data to be saved directly in internal memory. After data collection, users can connect the device to a local area network or the Internet via Ethernet to transfer data to computers or cloud platforms for subsequent analysis and management.
With its compact size, high sampling speed, excellent vibration resistance, and strong compatibility, the JD9550 is widely used in solar monitoring, environmental meteorology, structural health monitoring, and engineering testing. It offers stable operation and easy use, significantly improving the efficiency of data acquisition and analysis.
The device supports programmable control and can collect various signal types, including solar radiation, temperature, air pressure, shock, noise, vibration, velocity, displacement, overload, strain, and gyroscope signals. It integrates modules for data computing, recording, storage, and communication, achieving a fully integrated process from signal detection to data analysis.
The JD9550 houses a built‑in 32 GB high‑capacity storage unit that allows data to be saved directly in internal memory. After data collection, users can connect the device to a local area network or the Internet via Ethernet to transfer data to computers or cloud platforms for subsequent analysis and management.
With its compact size, high sampling speed, excellent vibration resistance, and strong compatibility, the JD9550 is widely used in solar monitoring, environmental meteorology, structural health monitoring, and engineering testing. It offers stable operation and easy use, significantly improving the efficiency of data acquisition and analysis.
Product Features
Compact and powerful, the JD9550 delivers strong computing performance and efficient data processing.
Supports multiple signal types for acquisition and analysis, ideal for environmental monitoring, solar observation, and ecological research.
Built‑in large storage enables automatic data reading and uploading for efficient data management.
Reliable and durable, the device operates stably under various environmental conditions.
·
·
·
·
Description
Specifications
Operating system
CPU
CPU - Main frequency
NPU
Ethernet port
485 interface
232 interface
Storage capacity
System architecture
RTC clock
Automatic timing Function
Operating Temperature
Vibration Certification
Salt spray testing Certification
IP rating
Controllable 12V Power supply
Input voltage
Overcurrent Protection
Power consumption
Weight
linux
Four core
Cortex-A55 2.0GHZ
1Tops computing power
Dual Ethernet port
2, with controllable power supply
2
Available capacity>32GB
arm64
Have
Possess
-60 ℃ to 85 ℃
IEC 60068-2
IEC 60068-2-11:2021
IP67
2 12V @ 2W
9-36V
Automatic
Average power consumption 2.4W 12V@200mA
Peak power consumption of 4.8W 12V@400mA
1.0kg|
|
