High‑precision distance measurement with adaptive waveform algorithm

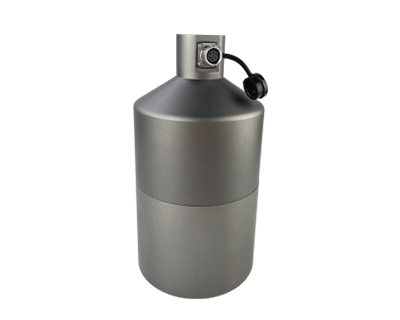

| QJ-JJ Series Digital snow depth | |
|
|
The QJ‑JJ Series Digital Snow Depth Sensor adopts an ultrasonic measurement principle, enabling non‑contact and high‑precision snow depth detection. The sensor emits ultrasonic pulses and calculates snow depth by measuring the time difference between pulse emission and return. By compensating for changes in the speed of sound through air temperature measurement, it ensures accurate results and enables the automated and precise monitoring of snowfall processes.

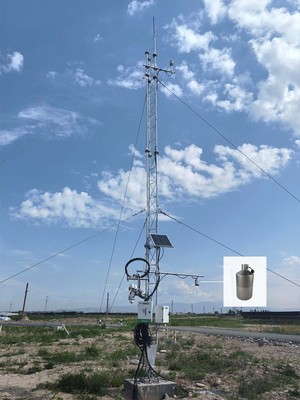

Beyond its high‑accuracy performance, the sensor features low power consumption, dust‑ and sand‑resistance, maintenance‑free operation, and easy installation, ensuring long‑term stability even under complex environmental conditions. Designed specifically for extremely cold and corrosive environments, it is capable of continuously monitoring snow depth variations and snowfall amounts over different time periods, providing reliable data support for meteorological and environmental monitoring applications.
Description
Specifications
Voltage range
Power consumption
Measurement time
Output
Measurement range
Accuracy
Resolution
Beam aperture
Working temperature
Sensor connector type
Chassis types
IP rating IP
Compliance
+9 ～28 VDC
0.2W(0.4W for Measure the peak power )
5 s typical, 20 s maximum
RS-485 Modbus RTU
0.5 to 3 m ;10m
±5mm OR ±0.2 %FS
0.1 mm
22°
-40℃～+50℃
SF12 10/P6II
Corrosion-resistant, type III anodized aluminum
IP6
IEC-60068-2-2: 2007
IEC-60068-2-30: 2005
IEC-60068-2-1: 2007
IEC-61326-1:2013
ISO 9227 -2006（720H）
IEC-60068-2-30: 2005
IEC-60068-2-1: 2007
IEC-61326-1:2013
ISO 9227 -2006（720H）
|
|
